Filters
-
The maintenance and replacement intervals are defined in the Periodicity table (Periodicity table).
-
Cleaning instructions can be found in the Filter cleaning chapter (Cleaning).
-
Use all provided filters.
-
Only a perfect filtration of the mixture ensures the good functioning of the sprayer.
-
The filtration quality of the spray mixture has a considerable influence on the success of the plant protection measures.
-
Respect indicated filter sizes.
-
The plant protection products used must be compatible with the indicated filter sizes. Particular care must be taken to ensure that the active ingredients are not retained by the filters. Ask the manufacturer of the plant protection product for information on a case-by-case basis.
|
Water tank filter basket |
18 mesh |
|
Mixture tank filter basket |
18 mesh |
|
Suction filter |
80 mesh |
|
Section filter |
100 mesh |
Nozzles
|
Single nozzle broadcast flow rate at 3 bar |
0.2 l/min 6.76 fl oz/min |
|
Spray angle (As) |
25° |
|
Spray geometry |
Flat triangle |
|
Orifice diameter (Do) |
0.46 mm |
Brand and type of nozzles: Euspray type OC1X502
Solenoid valves
|
Minimum opening time (Tv) |
10 ms |
Spray booms
|
Number of nozzles per boom |
52 nozzles |
|
Overlap of adjacent booms |
2 nozzles |
|
Distance between nozzles |
4 cm 1.57 in |
|
Total number of booms |
3 booms |
|
Total number of nozzles |
156 nozzles |
Operation with 3 spray booms
|
Effective number of nozzles |
152 nozzles |
|
Total spray width |
6.04 m 19.82 ft |
|
Flow of all booms in full |
30.4 l/min 8.03 gpm |
Operation with 2 spray booms
|
Effective number of nozzles |
102 nozzles |
|
Total spray width |
4.04 m 13.25 ft |
|
Flow of all booms in full |
20.3 l/min 5.37 gpm |
Operation with 1 spray boom
|
Effective number of nozzles |
52 nozzles |
|
Total spray width |
2.04 m 6.7 ft |
|
Flow of all booms in full |
10.1 l/min 2.69 gpm |
Residual volume
The total residual volume is defined in ISO 13440:1996 §2.1. It is the sum of the volume of the residue in the tank (dilutable volume) and the dead volume (non-dilutable volume). The maximum allowable value of this volume is defined in ISO 16119-2:2013 §5.1.1.3.1. The boom width taken into account is the total width used for spreading by cumulating the overlaps. This width is 6.12 m | 20.08 ft and is therefore wider than the projected with of 6.04 m | 19.82 ft.
|
Mixture tank volume (Vb) |
300 L 79.25 gal |
|
Total spraying width (Lb) |
6.04 m 21.10 ft |
|
Volume of total allowable residue (Vr = 0.5 % Vb + 2 Lb) |
13.74 L 3.63 gal |
Tank System
|
Water tank volume |
600 L 158.50 gal US |
|
Mixture tank volume |
300 L 79.25 gal US |
|
Overpressure limit |
6.0 bar 87 psi |
|
Pressure in the booms
|
3.0 bar 44 psi |
|
Broadcast flow rate at 7 km/h |
229 l/ha 30.7 g/acre |
|
Typical work rate |
4 ha/h 9.88 acre/h |
Inlet and outlet hoses
INFORMATION
It is recommended to use 6-meter-long inlet and outlet hoses.
Minimum bending radius of the pipes
|
Pipes ⌀19mm |
152 mm 6.0 in |
|
Pipes ⌀13mm |
104 mm 4.1 in |
Minimum length of the footprints on the ground
|
0.6 m/s (~ 2 km/h) | 2.13 ft/s (~ 1.24 mph) |
0.6 cm | 0.24 in |
|
1.7 m/s (~ 6 km/h) | 5.58 ft/s (~ 3.72 mph) |
1.7 cm | 0.67 in |
|
2.0 m/s (~ 7 km/h) | 6.56 ft/s (~ 4.34 mph) |
2.0 cm | 0.79 in |
The minimum length of the footprints on the ground Lp is given by the relation: Lp = Tv × Vm where Tv is the minimum valve opening time (see table above) Vm is the feed speed of the machine.
Width of the footprints on the ground
|
Booms height at 15 cm | 6 in |
6.4 cm | 2.52 in |
|
Booms height at 20 cm | 7.87 in |
8.6 cm | 3.39 in |
|
Booms height at 40 cm | 15.75 in |
17.2 cm | 6.77 in |
Mechanical values
|
Forward speed in row crops |
2.0 m/s 6.56 ft/s |
|
Forward speed in grasslands |
2.0 m/s 6.56 ft/s |
|
Minimum forward speed |
0.6 m/s 2.13 ft/s |
|
Maximum water mass |
600 kg 1323 lbs |
|
Maximum mixture mass |
300 kg 661 lbs |
|
Tank system mass |
1350 kg 2976 lbs |
|
Empty tank system mass |
450 kg 992 lbs |
|
Sprayer mass |
1160 kg 2557 lbs |
Tractor configuration requirements
|
Rear lifting capacity at 1 m from the hitch |
1200 kg 2645 lbs |
|
Front lifting capacity at 0.7 m from the hitch |
1400 kg 3086 lbs |
|
PTO power |
3 kW 4 ch |
|
Minimum distance between the rear wheels of the tractor and the machine (Lmin) |
0.3 m 0.98 ft |
|
Hitch |
The machine is suitable for tractors equipped with a standardized category 2 three-point hitch |
|
PTO rotation frequency |
540 min⁻¹ |
|
Hydraulic unit |
Must have a floating position (neutral) |
|
Hydraulic flow to power the pump |
30 l/min | 6.6 US gpm |

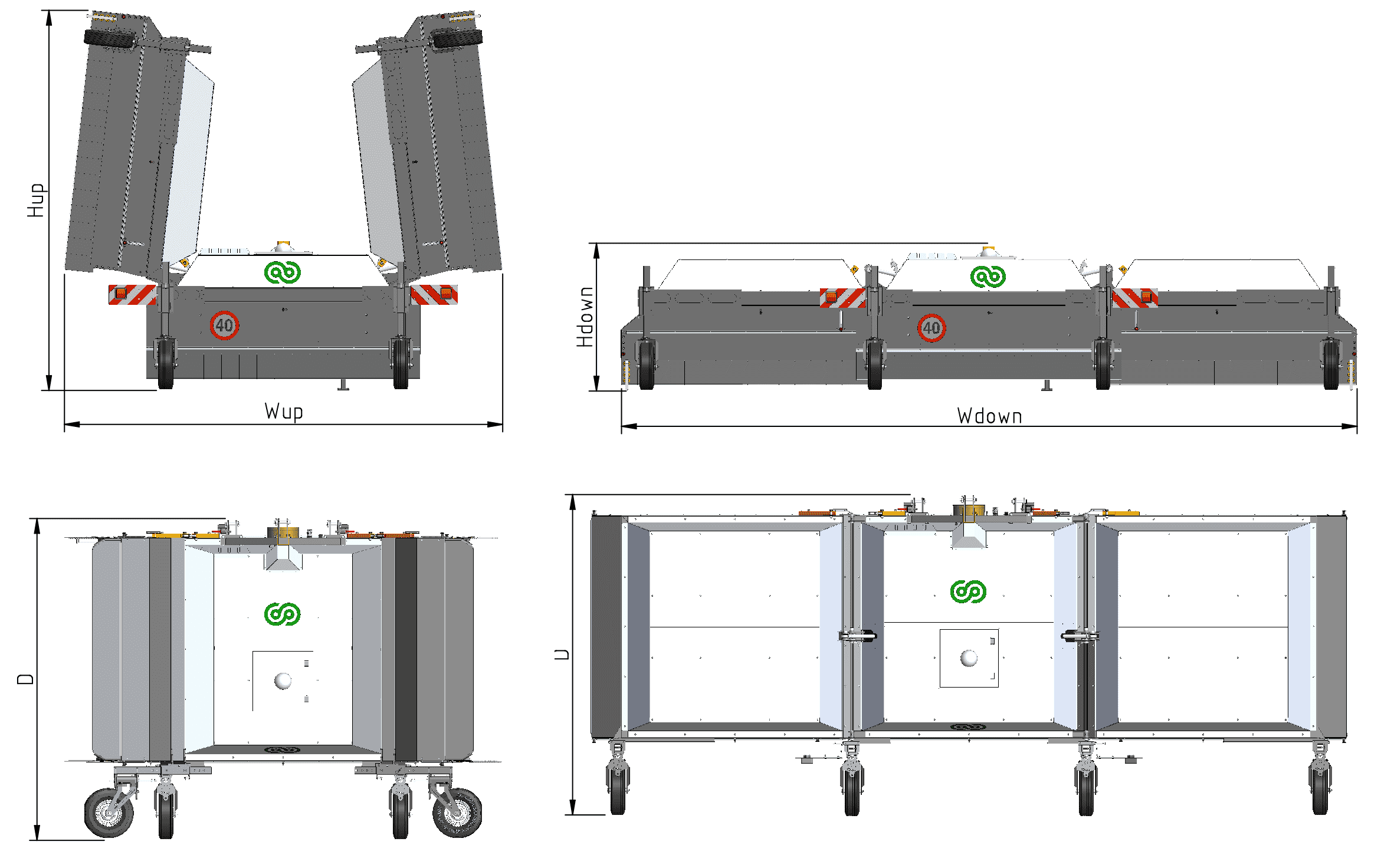

Spraying module dimensions
|
Hup |
3.2 m
|
|
Wup |
3.0 m
|
|
D |
2.7 m
|
|
Hdown |
1.26 m
|
|
Wdown |
6.46 m
|

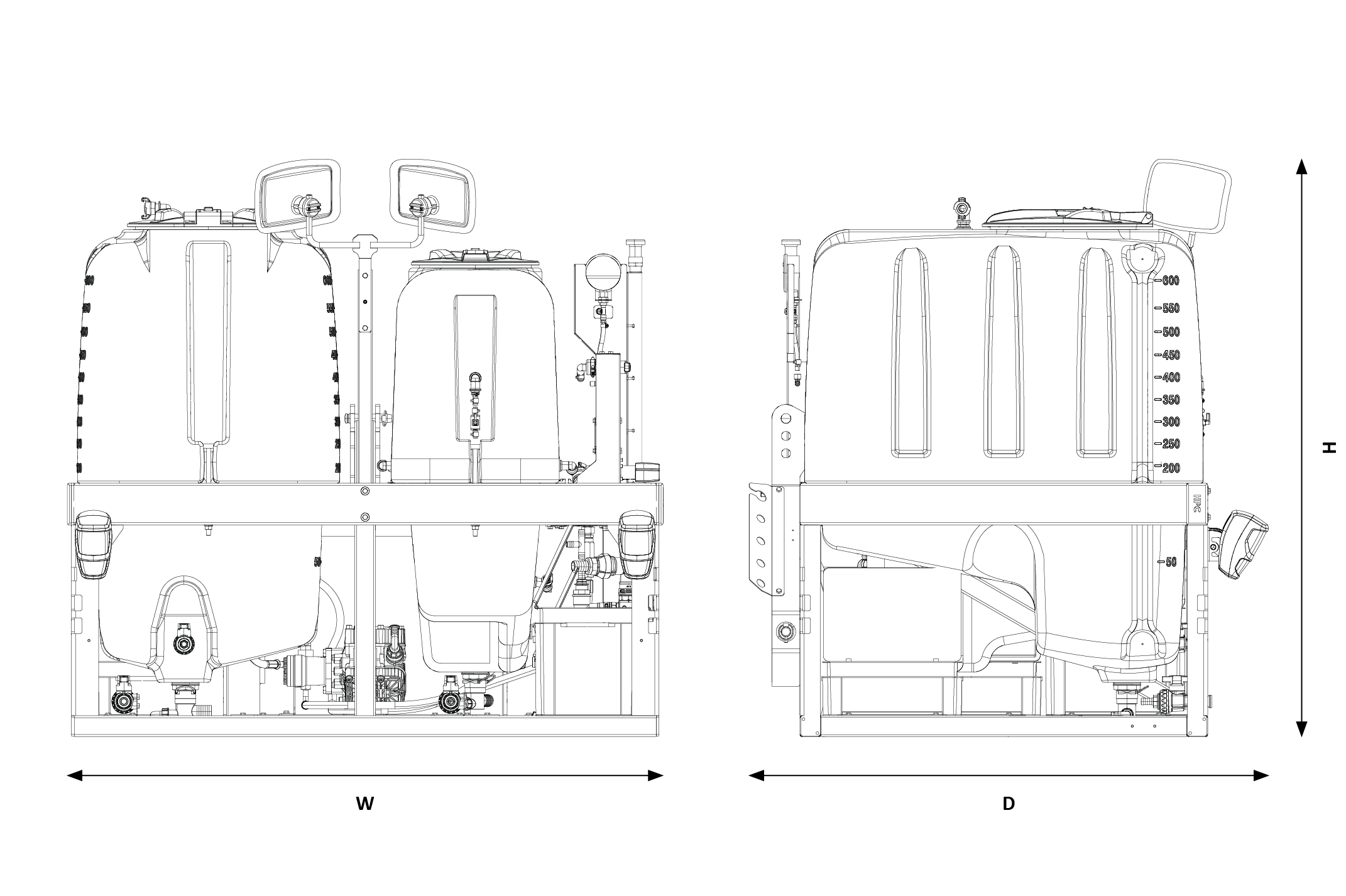

Dimensions du module double cuve
|
W |
1.7 m
|
|
D |
1.4 m
|
|
H |
1.7 m
|
