Sprayer hitching

DANGER

The power take-off (PTO) is dangerous and can cause serious injuries. Always stop the engine before connecting or disconnecting, and make sure all safety guards are properly in place.


  1. Check that the lower links of both the rear and front three-point linkages of the tractor are set to the same height.

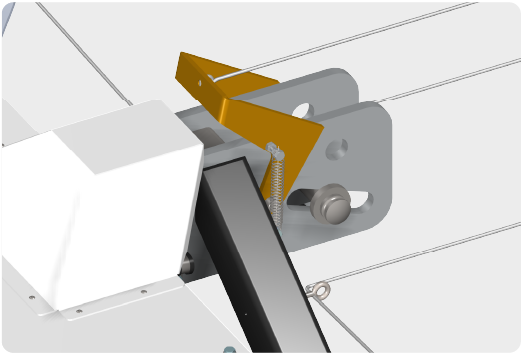

  1. Connect the sprayer to the rear three-point hitch in the transport position. Use the circular fixing hole in the upper three-point link, or the slotted hole with the safety catch.


  1. Connect the left and right lifting cylinders to a hydraulic unit.
    https://ecorobotix-user-manual.atlassian.net/wiki/s/1262048869/6452/2ef421ea87febf37890d2fb0e5bb13917e70857c/_/images/icons/emoticons/information.png This unit must have a float position (neutral position).

    1. Set the control lever on the control valve on the tractor to the float position.

    2. Clean the hydraulic hose ends before connecting them to the tractor.

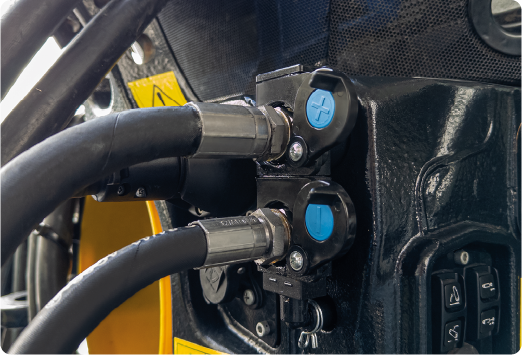

    3. Connect the hydraulic hoses to the tractor control units.

  2. Pressurize the distributor.

  3. Raise the rear three-point linkage.


  1. Raise both parking supports.


  1. Connect the mixture distribution hoses. The inlet and outlet connections are keyed.

INFORMATION

Make sure the hoses have enough clearance for all positions of the three-point hitch.

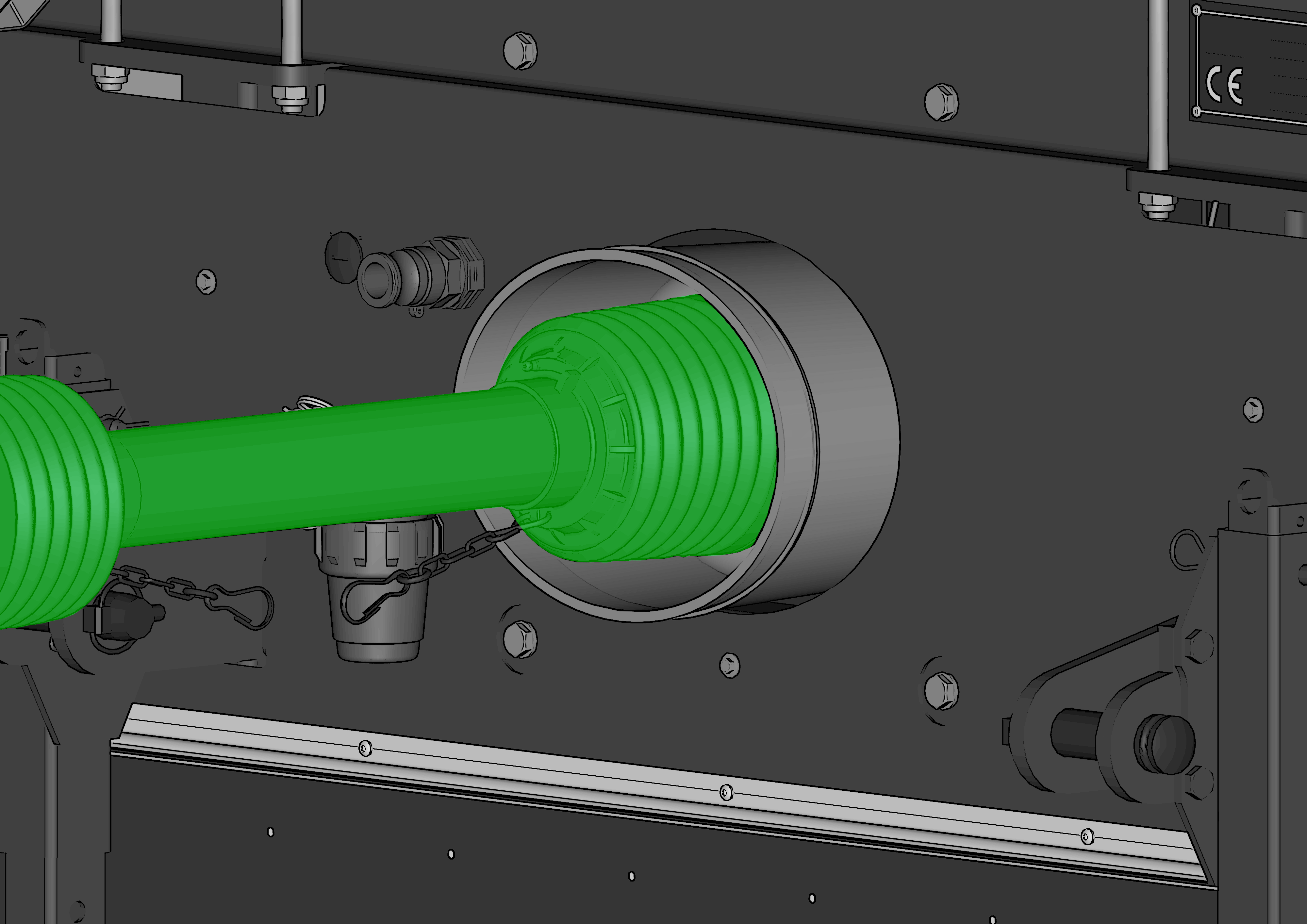

  1. Connect the power take-off (PTO).

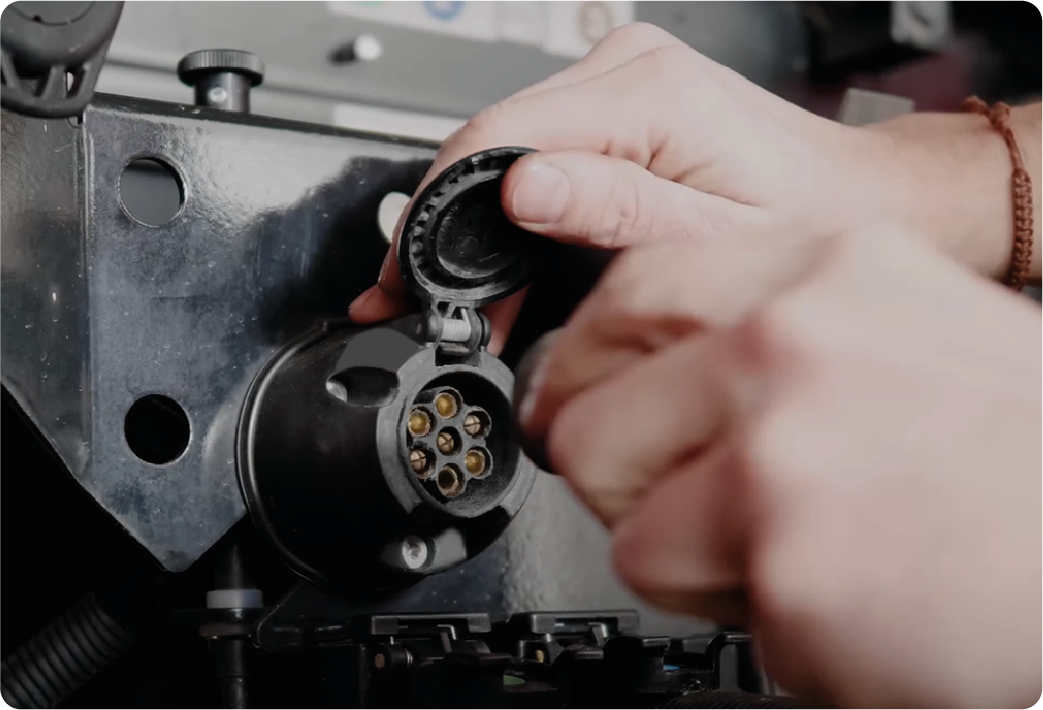

  1. Connect the 7-pin connector from the rear running lights to the tractor. The cable runs in the same place as the hydraulic hoses.


  1. Lock the steering of the castor wheels by putting the pins in position 2.
