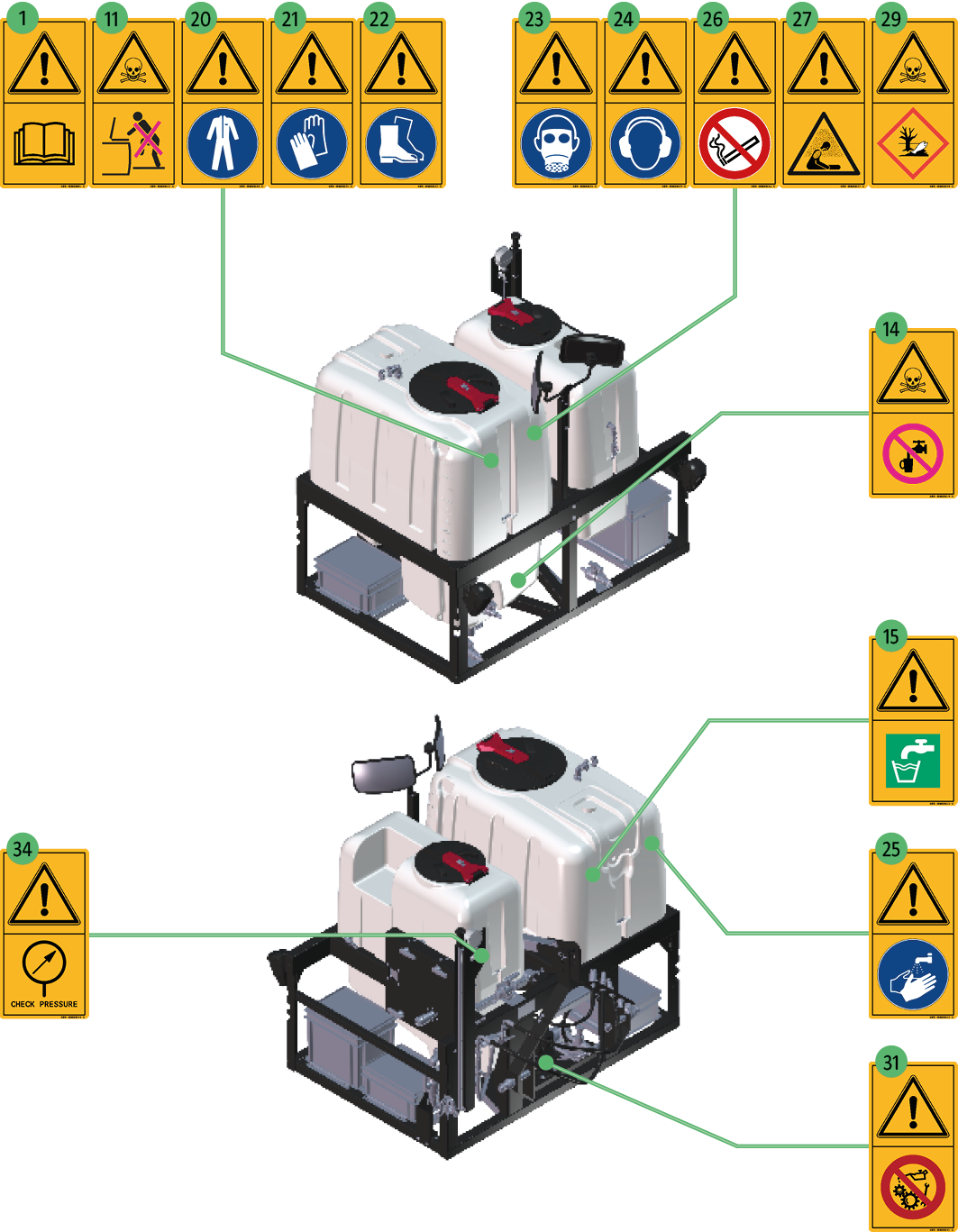

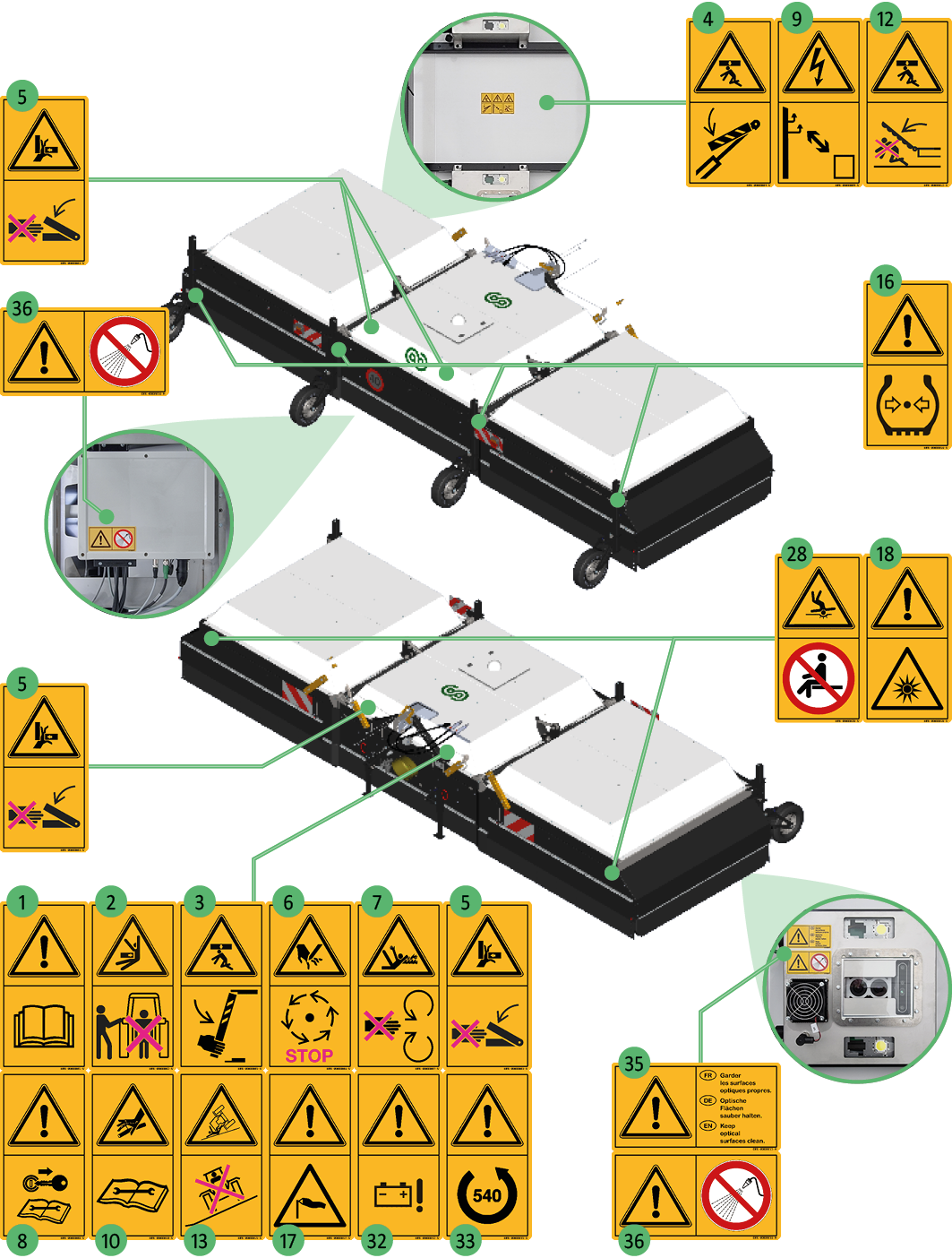

Read the user manual carefully and completely. It contains all the necessary instructions for the safe use of the machine.
Do not stand between the machine and the tractor.
Set up the support before entering a danger zone.
Lock the module when it is raised.
Stay away from areas where there is a risk of crushing, especially when handling the modules.
Wait until all parts of the machine have come to a complete stop before working on it.
Stay away from the PTO shaft and rotating parts when they are in motion.
Stop the tractor engine and remove the ignition key before performing any maintenance or repairs.
Keep as far away as possible from high-voltage lines. Take into account the dimensions of the modules during transport and folding.
Presence of hydraulic tubes under pressure. Beware of accidental leaks, oil splashes in case of line breaks and consult the user’s manual for maintenance and repair operations.
Poisoning hazard. Never enter the tank. Never stir liquids with your hands.
Stay away from the tipping area of the modules when handling them.
Avoid slopes where the machine could slide or tip over. Do not fold the modules when the machine is tilted.
Poisoning hazard. Non-drinkable liquid.
Drinkable liquid.
Check tire pressure periodically, as it affects the height of the modules and therefore the quality of the spraying.
Do not operate the machine in windy conditions.
Strobe light. Keep sensitive people away. Risk of epilepsy. Risk of disturbance to wildlife.
,
,
,
,
Wear the PPE indicated on the pictogram when the situation requires it.
Hand rinse tank.
Do not smoke or vape in the vicinity of herbicides, fungicides, insecticides, or fertilizers.
Danger of inhalation of harmful or toxic substances. Wear a dust mask before leaving the cabin.
Never place or carry people, animals or objects on the machine, whether it is stationary or in motion.
Risk of pollution. It is strictly forbidden to discharge the products into the environment or sewers.
Do not lubricate while the machine is in operation.
The system is powered by batteries. They must be unplugged during interventions that require a complete disconnection of the power supply.
Make sure that the direction of rotation and the number of revolutions of the tractor's PTO are correct.
Observe the distribution system pressures indicated in the manual.
Keep optical surfaces clean.
Do not use a pressure jet on optical surfaces.
