CAUTION
Comply with all local road laws when transporting or moving agricultural machines on public roads.
-

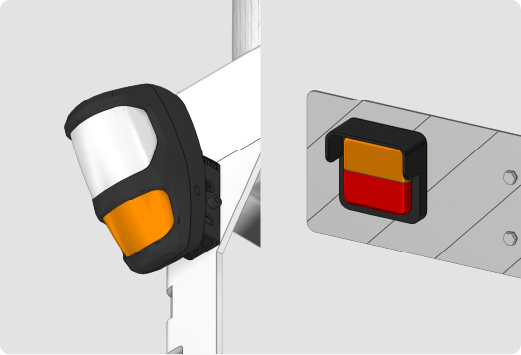

Check that headlights and rear lights are working properly.
-
Check that the ON/OFF control box is securely attached and that its cable cannot be cut during transport.
-
Raise the wheels at the ends of the spray module as much as possible to avoid exceeding the maximum width when transported in the closed position.
-

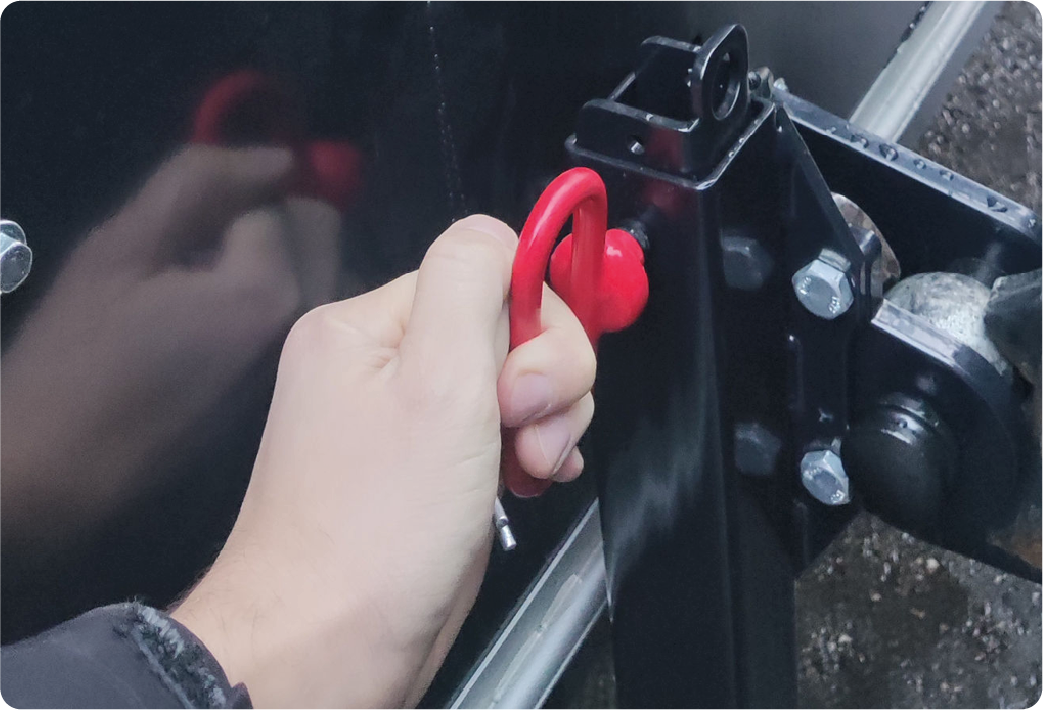

Raise both parking supports.
-
Raise the spray booms to their maximum level using the knob on the back of each module.
-
Raise the two front covers and the two rear covers to their maximum level with the adjustment sliders. Each cover has two sliders.
INFORMATION
The front cover and the rear cover of the central module are not adjustable.
-
Secure the central wheels with safety pins to prevent them from wobbling during transport.
-
Raise and secure the side modules in transport position with the chains.
