INFORMATION
Do not operate the valves when the pump is running.
-
Activate the front hydraulic unit in the cab.
-

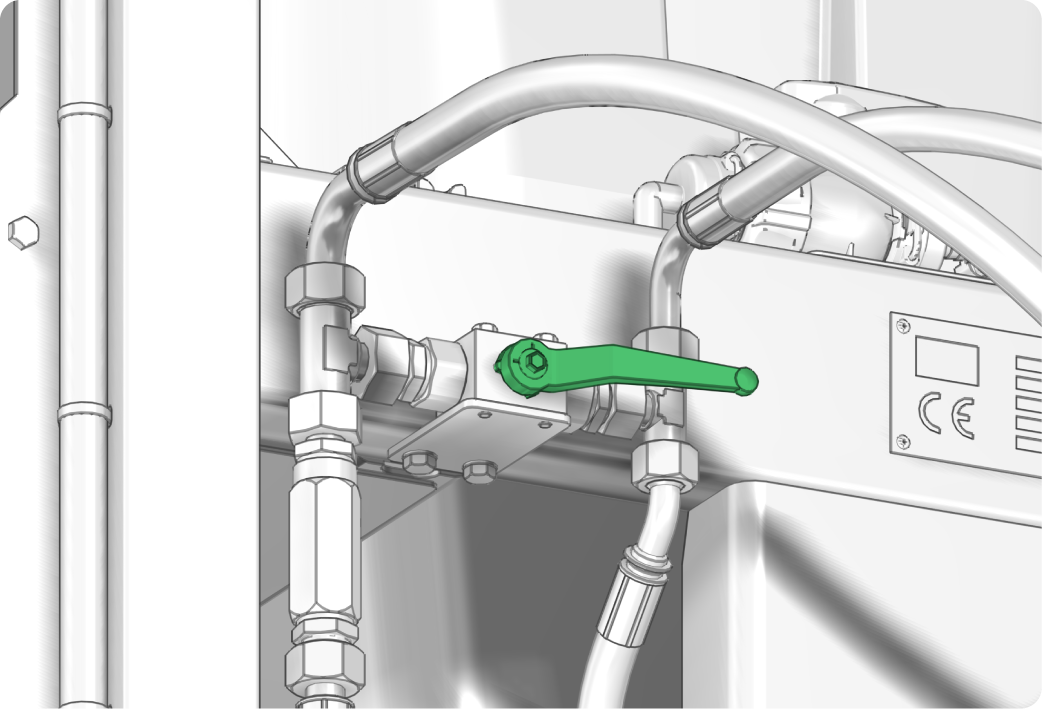

Before handling the valves, the pump must be switched off by positioning the general valve horizontally.
INFORMATION
The general valve allows the hydraulic flow to be diverted so that the pump can be stopped without having to activate the front hydraulic unit in the cab each time the valves are operated.
-
Set the valves to Spraying position mode.
INFORMATION
Do not use this 3D illustration as a reference. Please refer to the valve position modes table.
-
In the tractor, set the PTO speed to 540 tr/ min. Do not use the economy mode (750 tr/ min).
-
Check the rotation direction of the PTO.
-
Engage the PTO.
-

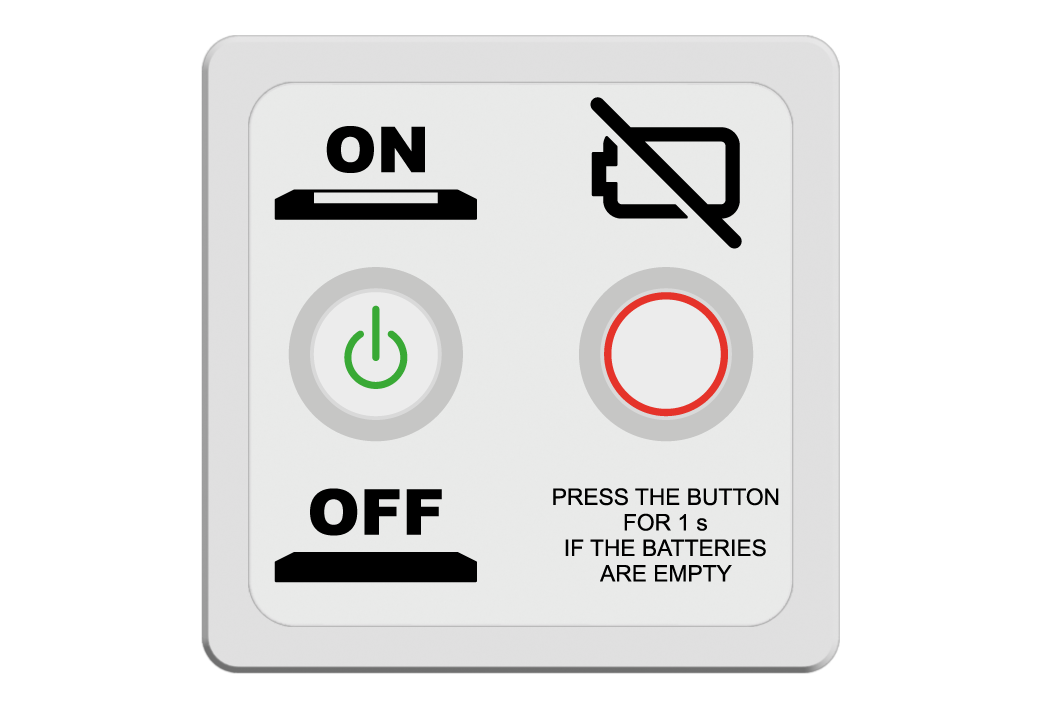

Turn on the sprayer control system by pressing the green button on the ON/OFF control box. This control box hooks on magnetically.
-
Check after a few minutes that the system has started:
-
The green light of the ON/OFF control box must be on.
-
The tablet must be connected to the machine's Wi-Fi network.
-
-

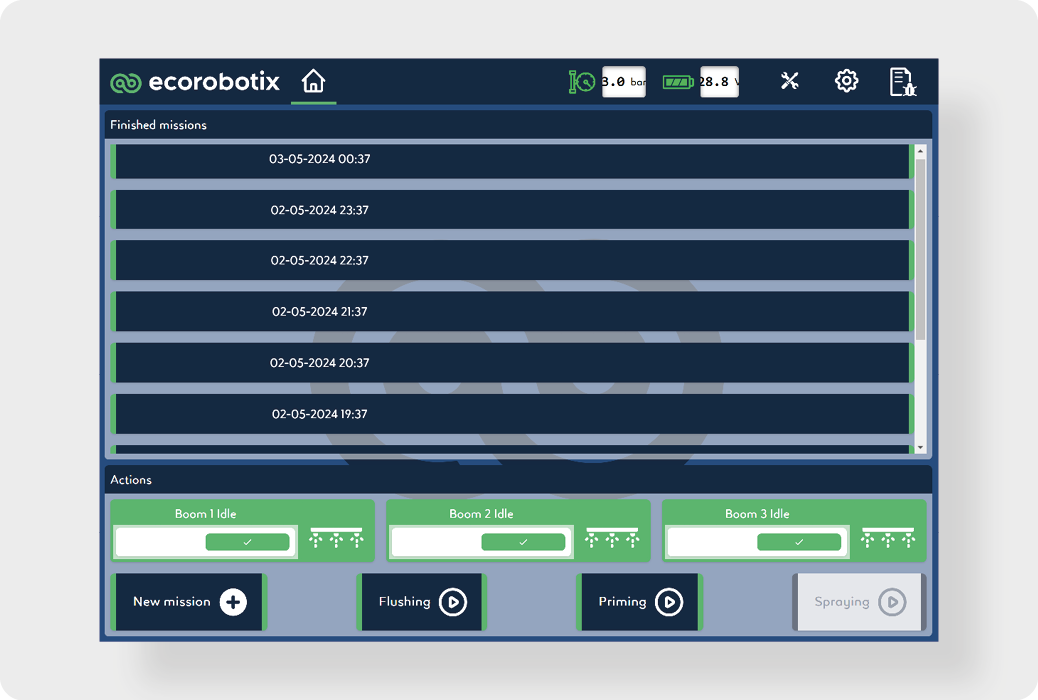

The machine's user interface must be displayed on the tablet.
-
If the batteries are empty: press the red button on the ON/OFF control box for 1 second to send an excitation signal to the alternator, to restart it.
-
Position the general valve vertically to start the pump.
INFORMATION
If the pump does not start, check that the front hydraulic unit is activated in the cab.
