Tank system hitching

  1. Connect the dual tank module to the front three-point hitch. Use the circular mounting hole in the upper center arm of the three-point hitch.

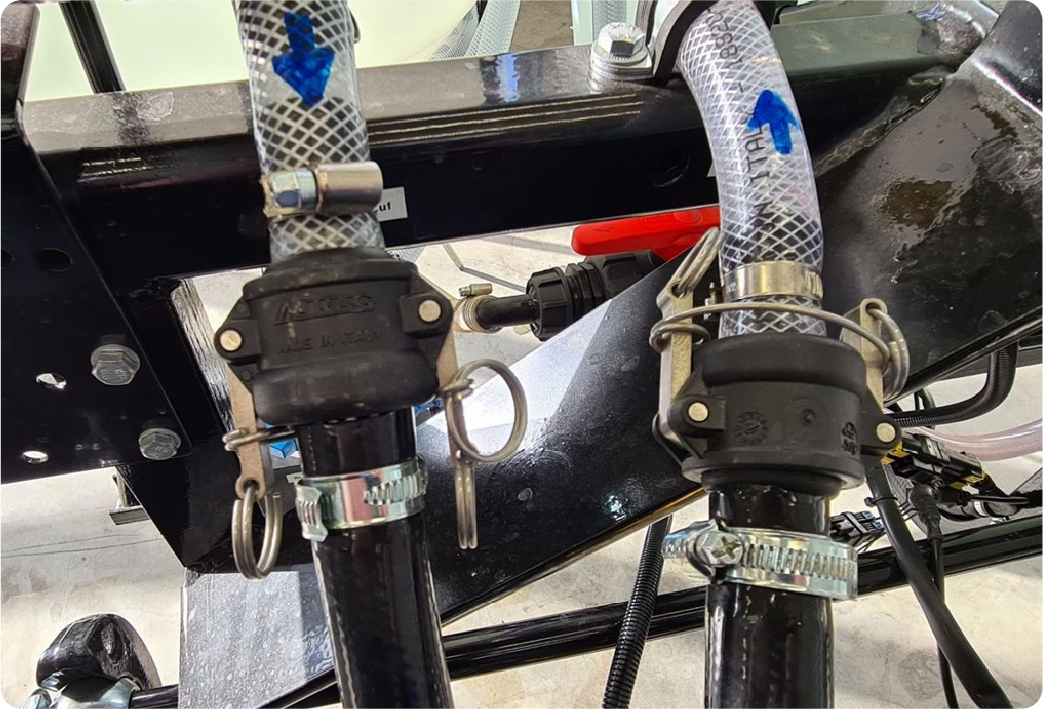

  1. Connect the mixture distribution hoses.

INFORMATION

The inlet and outlet connections are keyed.

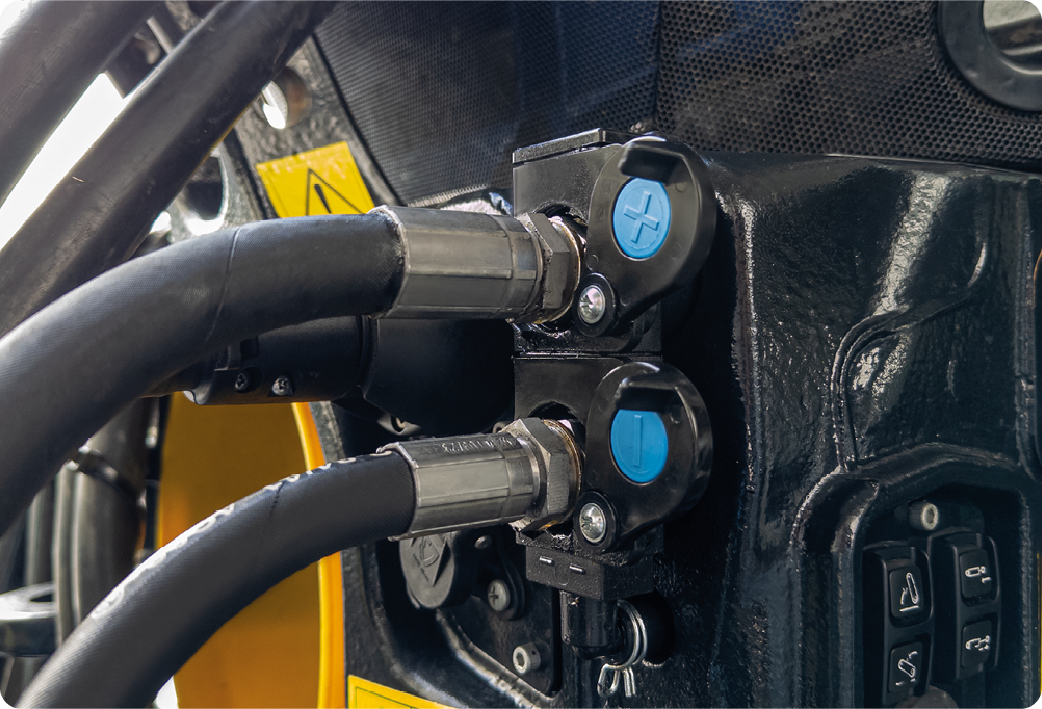

  1. Connect the hydraulic couplings to the tractor's front hydraulic unit.

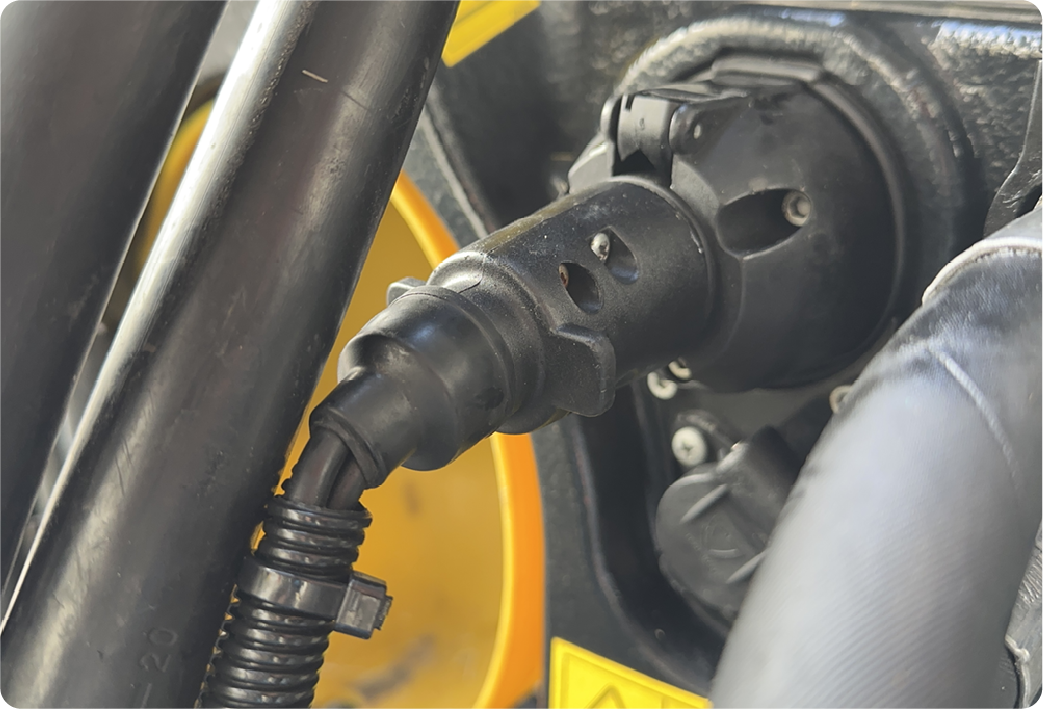

  1. Connect the 7-pin connector for the front running lights.



  1. Make sure the hoses have enough clearance for all positions of the three-point hitch.


  1. Lift the dual tank module by the three-point linkage.
