Manufacturer's plates

INFORMATION

  • Do not remove the manufacturer's plates, homologation plates and markings attached to the machine and its components.

  • These plates must be present even when the machine is resold.

  • These plates must be present during the periodic inspection of the machine.

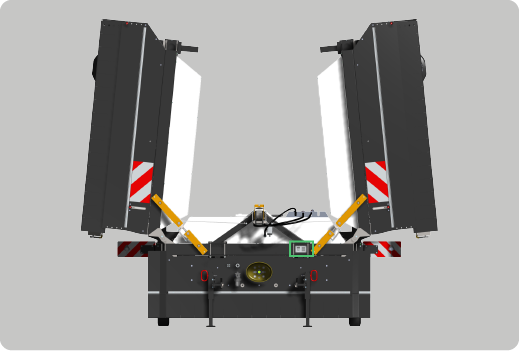

Sprayer manufacturer's plate





The nameplate indicates the serial number that should be provided to the Ecorobotix representative when communicating or ordering parts.

This plate meets the requirements of the machinery directive (2006/42/EC 1.7.3) and is marked as follows:

  • Manufacturer’s name and address

  • CE certification mark

  • Designation

  • Type

  • Mass

  • Year of construction

  • Serial number

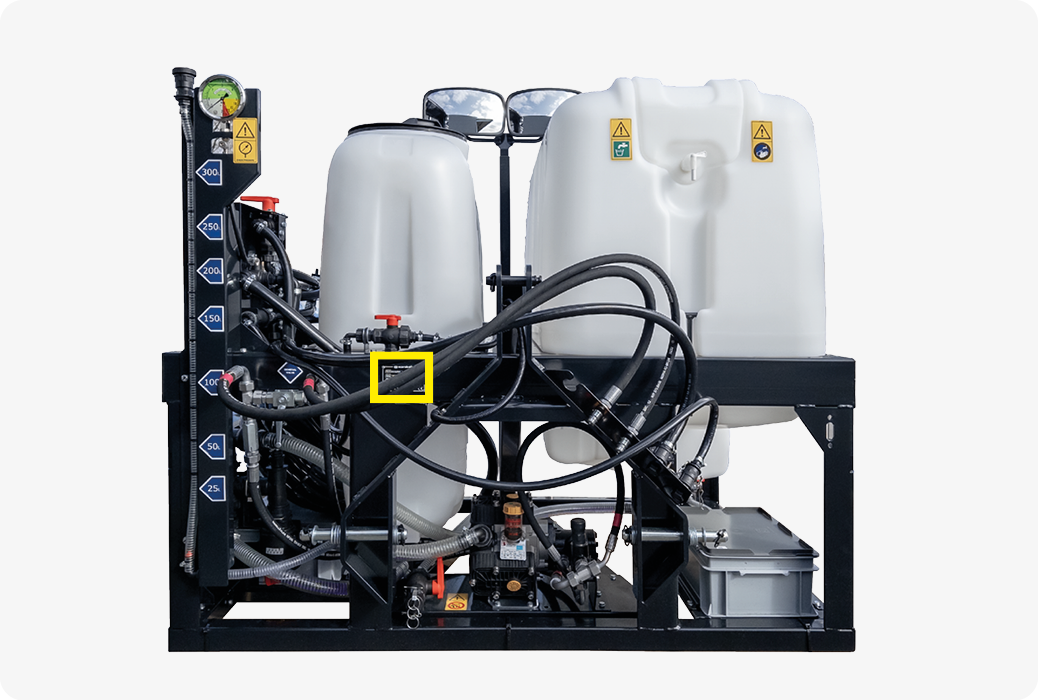

Tank system manufacturer's plate





The nameplate indicates the serial number that should be provided to the Ecorobotix representative when communicating or ordering parts.

This plate meets the requirements of the machinery directive (2006/42/EC 1.7.3) and is marked as follows:

  • Manufacturer’s name and address

  • CE certification mark

  • Designation

  • Type

  • Mass

  • Year of construction

  • Serial number

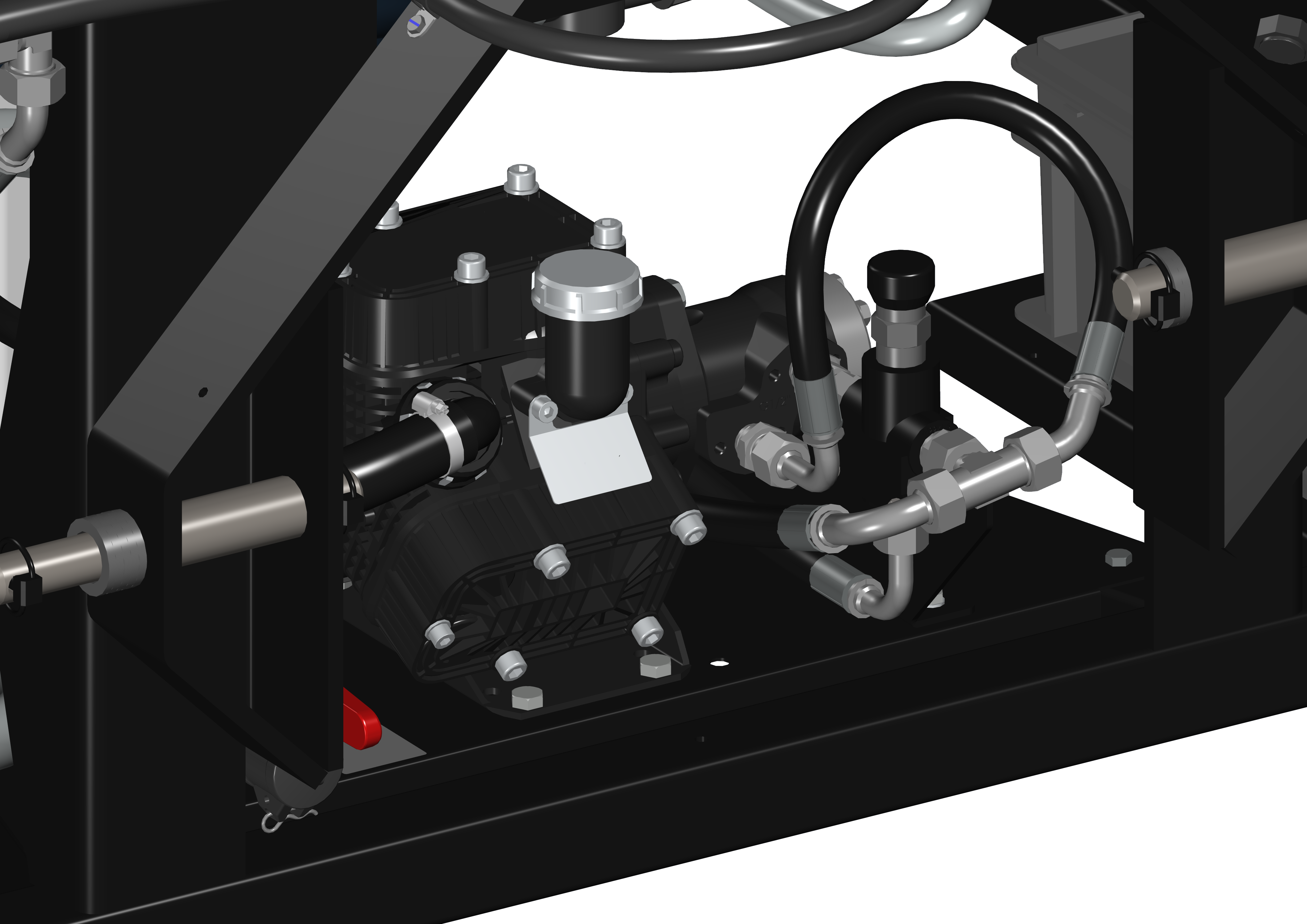

Pump manufacturer's plate


The serial number is printed on the supplier plate attached to the pump.


  • Name and address of the manufacturer

  • Year of construction

  • Serial number

  • Designation

  • Flow rate

  • Pressure

  • Type

  • Test
